Wire Thread Inserts Baercoil
50.00 - 500.00 INR/Piece
Product Details:
- Surface Treatment Other
- Grade AISI 304
- Width 1.6 mm ++ Millimeter (mm)
- Standard DIN 8140
- Product Type THREAD INSERT
- Usage THREAD REINFORCEMENT AND REPAIR
- Material Stainless Steel
- Click to View more
X
Wire Thread Inserts Baercoil Price And Quantity
- 50.00 - 500.00 INR/Piece
- 10 Piece
Wire Thread Inserts Baercoil Product Specifications
- THREAD INSERT
- THREAD REINFORCEMENT AND REPAIR
- Stainless Steel
- 1.6 mm ++ Millimeter (mm)
- DIN 8140
- AISI 304
- Other
- Industrial, automobile etc
Wire Thread Inserts Baercoil Trade Information
- 10000 Piece Per Week
- 5-7 Days
- Contact us for information regarding our sample policy
- All India
- On request
Product Description

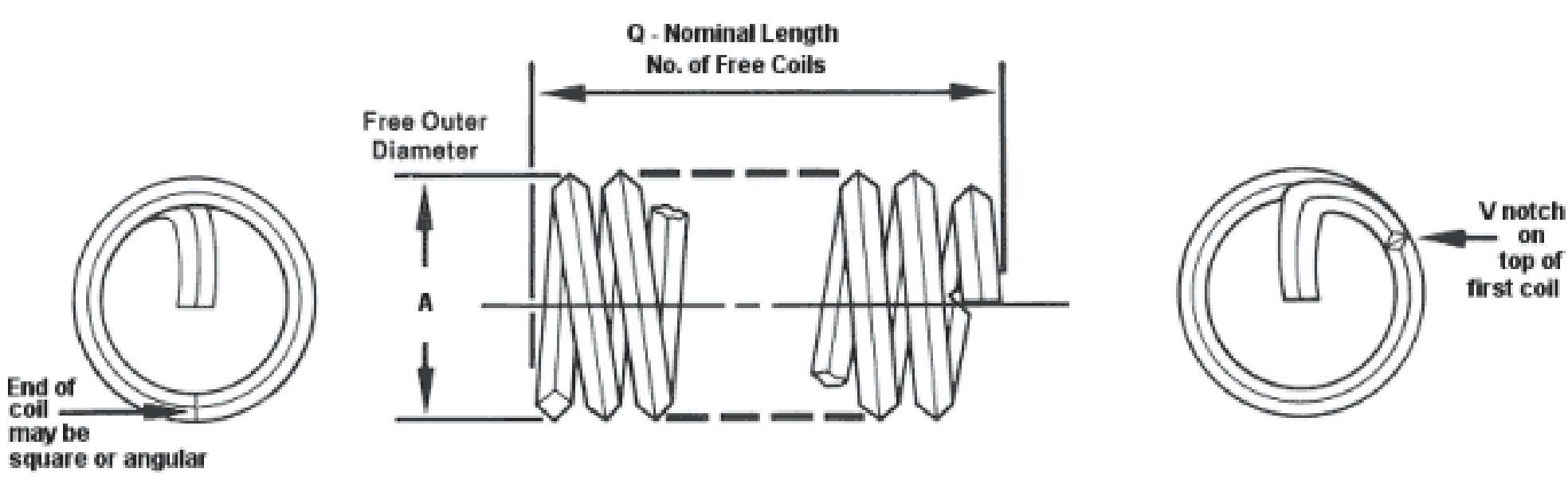

BAERCOIL THREAD INSERTS
These are wire thread inserts from BAER, Germany, made from austenitic chromium nickel steel (stainless steel AISI 304) with a material tensile strength of at least 1400 N/mm². The wire is swaged in cold form during production to a rhombic cross section ensuring performance and maximum space utilisation.
With BaerCoil thread inserts you achieve a better thread connection in regard to wear resistance, thread abrasion, surface finish, corrosion- and heat resistance than with any other single screw connection. BaerCoil inserts can give material savings of up to 30%, resulting in reduced space, weight and costs. BaerCoil is typically used for thread repair and thread reinforcement.
Thread Reinforcement
- Reinforces and increases the pull-out strength especially in materials with low shear strength
- Provides a better balance strength distribution
- Greater effective shear surface
- Protection against wear of thread
- Higher corrosion resistance
- Helps in reduction of weight and space thus minimizing total cost
- Facilitates the repair of damaged or worn threads
- Salvages rejected parts while maintaining the original thread size
- Increases pull-out strength of the thread
- Corrosion resistance
- Baercoil inserts are well suited for use in:
- Aluminium and Aluminium Alloys
- Brass, Bronze and cast-iron
- Magnesium Alloys
- Steels and plastics
Application areas
- Automobile industries : Engine, Transmission, Body Parts, Radiator, Oil Drain, Spark Plug etc.
- Aerospace : Engines, assembly parts reinforcement.
- Medical Devices, Electronic and Laboratory Technology, Capacitors, Casings.
- Pumps, machine construction, components
- Military equipment, airplanes, tanks, scopes etc.
- Materials Available
- Stainless Steel AISI-304
- Stainless Steel AISI-316
- Inconel X750 for high temperature applications
- Nimonic 90 for high temperature applications
- M1.6 to M42
- 2-56UNC to 1.1/2³-6UNC
- 2-56UNF to 1.1/³-12UNF
- Fine Pitch for Spark Plugs

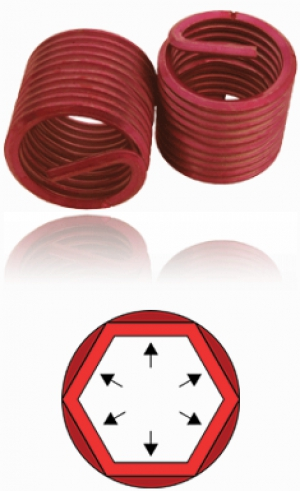

- Available as free running inserts and locking thread inserts.
- View installation Video here.
