Blind Rivet Nut Countersunk

Product Description

OPEN End Blind Nuts

The open ended style of this rivet nut allows the stud, or male threaded component, to thread through the rivet nut without limiting the length or protrusion of the male threaded part.

The knurled body of the rivet nut provides increased resistance to turning in the application especially when they are installed into softer materials.

The countersunk head is often chosen as it will sit flush within the application, leaving an aesthetically pleasing flat and smooth finish. The full countersunk head of this rivet is stronger than the reduced countersunk type but is also deeper meaning that it can only be used in material thicknesses greater than 1.5mm.

The knurled body of the countersunk rivet provides increased resistance to turning in the application, especially when installed in softer materials.

Round Body Countersunk [CSK] STEEL

Typical uses

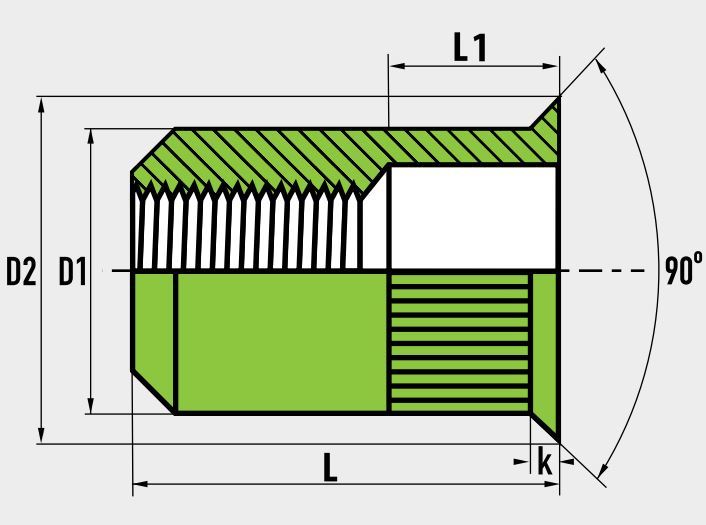

Always countersink at 90 so that the head of the installed Rivet Nut protrudes about 0.1 mm above your workpiece. This ensures direct contact with the assembled component.

If you do not have the possibility to countersink the sheet to achieve a flush finish, consider using the low profile head RCSK Reduced CSK or Small CSK head type.

For more information and product datasheets visit

Blind Rivet CSK product page.
